上海駿精賽自動化有限公司
|
Cycle speed maximum (with good CN mold) |
Forming adn cutting production cycle of up to 30 cycles/min. Single forming production cycle of up to 35 cycles/min. |
|
設備運轉大速度(在使用國內品質好的模具的情況下) |
成型沖切可以達到30周期每分鐘,單成型可達35周期每分鐘 |
|
Dry cycle speed |
50 cycles/min |
|
空機運行周期 |
50周期每分鐘 |
|
|
760x580mm |
|
大成型面積 |
|
|
Forming area minimum |
375x350mm |
|
小成型面積 |
|
|
Closing force (Forming/Cutting station) |
250KN/500KN |
|
閉合力(成型/沖切站) |
|
|
Height of formed part above or below film level |
150mm |
|
成型產品高度，正向/負向 |
|
|
Forming station Top / Bottom table movement |
170mm |
|
成型站上/下工作臺移動 |
|
|
Film thickness range (depending on film properties) 膜料 |
0.2-1.8mm |
|
厚度范圍（取決于膜料特性） |
1 Integrated forming, punching, stacking, and waste winding station, sheet stock treatment is more smooth, and energy consumption is less.
集成的成型、沖切、堆疊、廢料收卷工位，片料處理更順暢，能源消耗更低。
2 Forming and cutting station use firm cast iron structure, matched with roller bearing's crankshaft to guarantee perfect forming, cutting.
成型及裁切站使用牢固的鑄鐵結構，配用滾柱軸承的曲臂保證成型,裁切。
3 Forming station with independent servo-plug drive on upper table, gives you more flexible to adjust the process, gets the best products.
成型站上工作臺獨立伺服馬達驅動的輔助拉伸頭?？梢宰屇`活的調整生產工藝，得到好品質的產品。

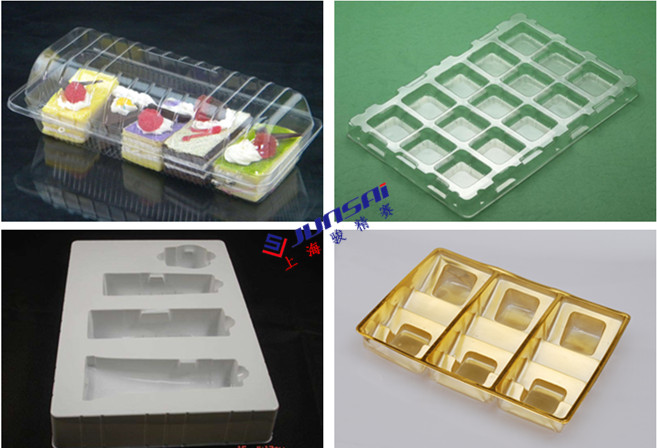

主要適用于PS、HIPS、PVC、PET、PP等塑料片材成型，生產各種盒、碟、托盤、碗、蓋等包裝制品。如：食品盒、蛋糕盒、快餐盒、糕點托盤、超市托盤、醫藥針劑托盤、口服液托盤.等
